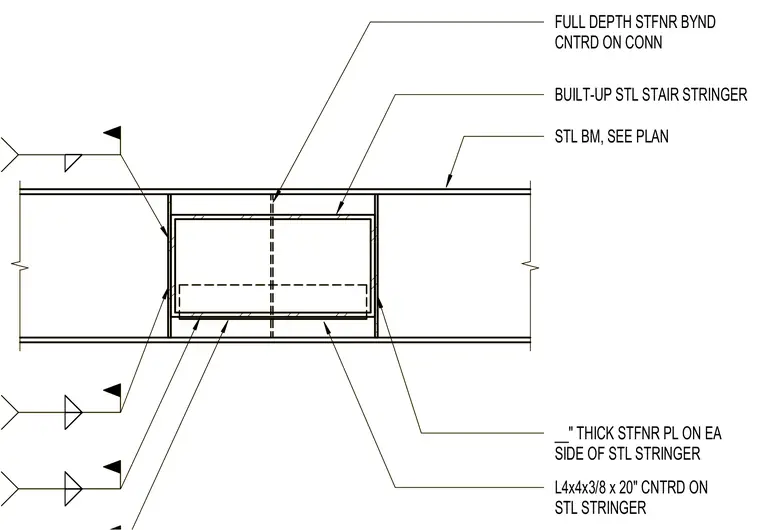

A built-up steel stair stringer frames into a supporting steel beam sized per plan. A 4x4x3/8-inch angle measuring 20 inches in length is centered on the steel stringer. Stiffener plates of specified thickness are welded on each side of the steel stringer. A full-depth stiffener beyond is centered on the connecting steel beam.
BUILT-UP STL STAIR STRINGER __" THICK STFNR PL ON EA SIDE OF STL STRINGER L4x4x3/8 x 20" CNTRD ON STL STRINGER FULL DEPTH STFNR BYND CNTRD ON CONN STL BM, SEE PLAN BUILT-UP STL STAIR STRINGER __" THICK STFNR PL ON EA SIDE OF STL STRINGER L4x4x3/8 x 20" CNTRD ON STL STRINGER FULL DEPTH STFNR BYND CNTRD ON CONN STL BM, SEE PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
