An L1-1/2x1-1/2x3/16 angle is installed either above or below the metal deck before cutting a hole. This reinforcement applies at holes from six inches to twenty-four inches wide in bare metal decks without concrete. A one-eighth inch fillet weld is applied typically at each flute. Minimum dimension requirements govern the spacing and placement relative to the opening.

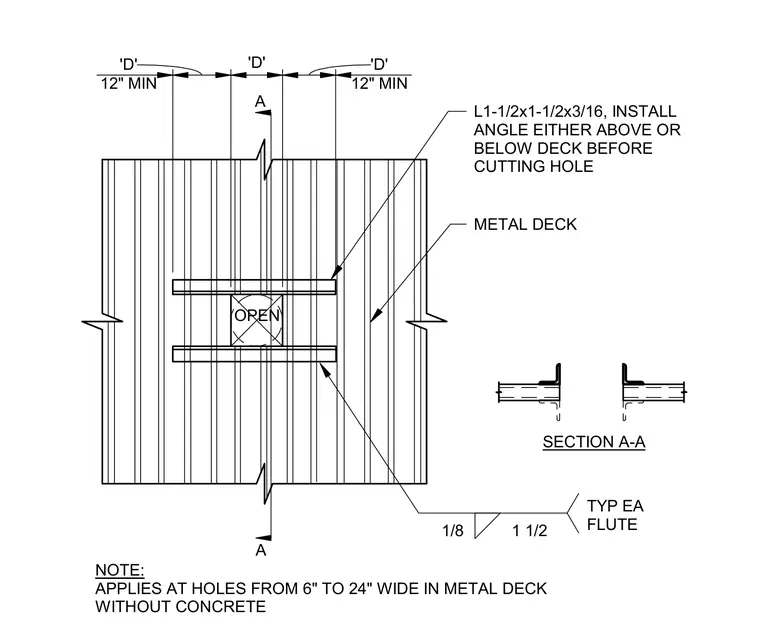

METAL DECK SECTION A-A OPEN NOTE: APPLIES AT HOLES FROM 6" TO 24" WIDE IN METAL DECK WITHOUT CONCRETE L1-1/2x1-1/2x3/16, INSTALL ANGLE EITHER ABOVE OR BELOW DECK BEFORE CUTTING HOLE A A 12" MIN 'D' 'D' 12" MIN 'D' 1/8 1 1/2 TYP EA FLUTE
