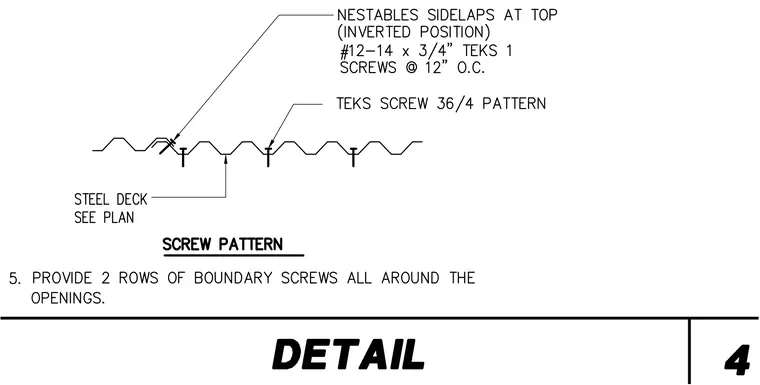

Nestable sidelaps at the top in an inverted position are fastened with number 12-14 by 3/4 inch Teks 1 screws spaced at 12 inches on center. Additional fastening utilizes Teks screws in a 36/4 pattern across the steel deck profiles. Two rows of boundary screws are required all around openings.
