Stud rails terminate at the face of the column typically, aligning with the column faces unless noted otherwise. Three equal spaces are provided along one axis and two equal spaces along the adjacent axis. Dimensioned spacing includes seven and three-eighths inches and eight and three-eighths inches.

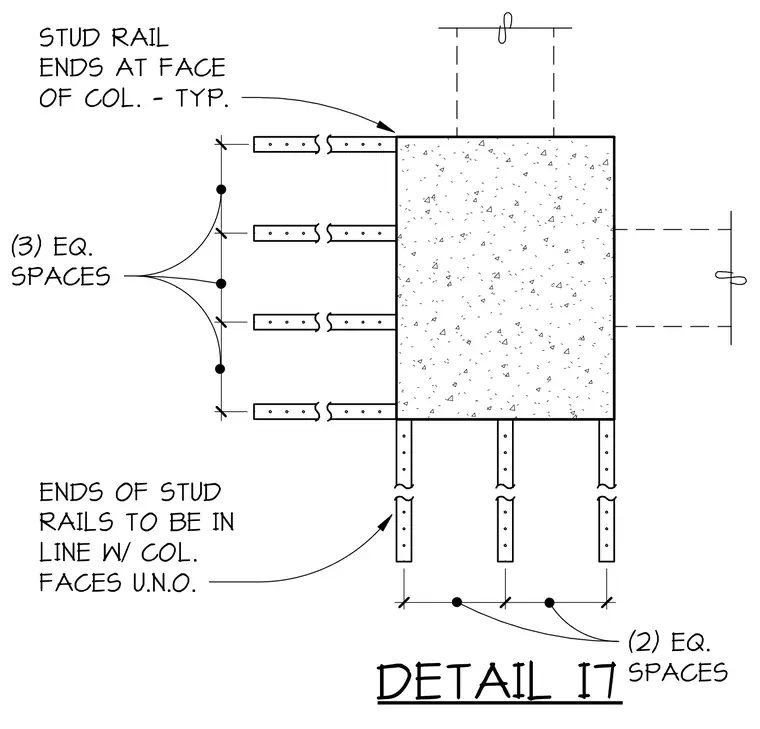

DETAIL I7 (3) EQ. SPACES (2) EQ. SPACES 7 3 /8 " 7 3 /8 " 7 3 /8 " 8 3/ 8 " 8 3/ 8 " STUD RAIL ENDS AT FACE OF COL. - TYP. ENDS OF STUD RAILS TO BE IN LINE W/ COL. FACES U.N.O.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
