Trellis Glulam Beam on Steel Beam Detail

Materials

Steel Timber / Wood

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection Timber / Mass-Timber Connection

About this detail

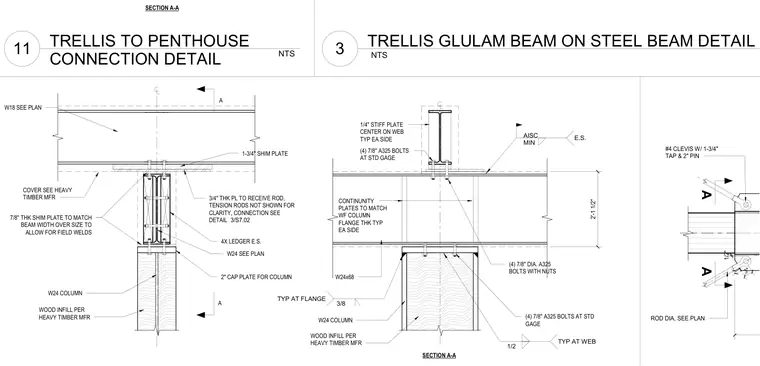

A glulam beam connection bears onto a W-shape steel beam assembly. The glulam member sits above a structural steel framing layout featuring wood infill per the heavy timber manufacturer. Connection hardware includes matching shim plates, anchor and through bolts, and specific plate configurations to transfer structural loads between the timber trellis and steel superstructure. Additional views detail the connection with tension rods, clevis assemblies, and stiffener plates welded to the steel column and beam webs.
