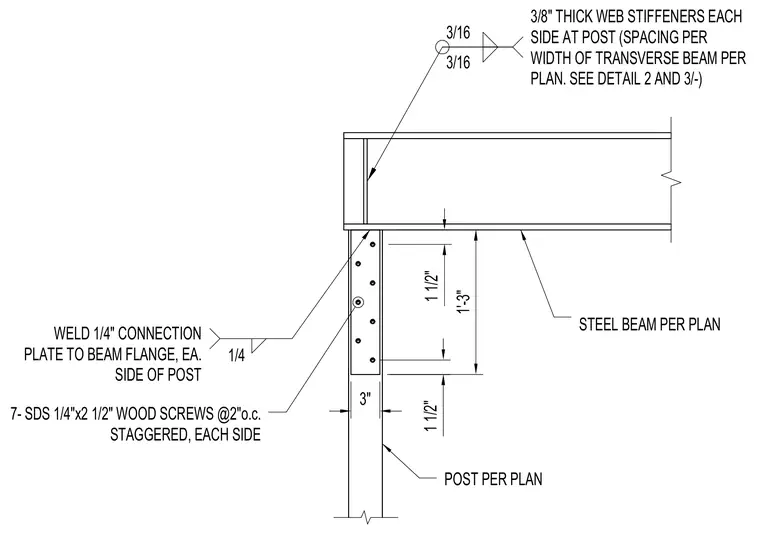

A steel beam bears onto a timber post sized per plan, connected by a pair of 1/4-inch connection plates welded to the beam flange on each side of the post with a 1/4-inch fillet weld. Seven 1/4-inch by 2-1/2-inch SDS wood screws at 2 inches on center, staggered, secure each connection plate to the wood post. Three-eighths-inch thick web stiffeners are welded to each side of the post with 3/16-inch fillet welds, with spacing determined by the width of the transverse beam per plan.
S2.5 S2.5 S2.5 S2.5 S2.5 S2.5 S2.5 1'-3" 1 1/2" 1 1/2" 3" POST PER PLAN STEEL BEAM PER PLAN WELD 1/4" CONNECTION PLATE TO BEAM FLANGE, EA. SIDE OF POST 1/4 7- SDS 1/4"x2 1/2" WOOD SCREWS @2"o.c. STAGGERED, EACH SIDE 3/8" THICK WEB STIFFENERS EACH SIDE AT POST (SPACING PER WIDTH OF TRANSVERSE BEAM PER PLAN. SEE DETAIL 2 AND 3/-) 3/16 3/16
