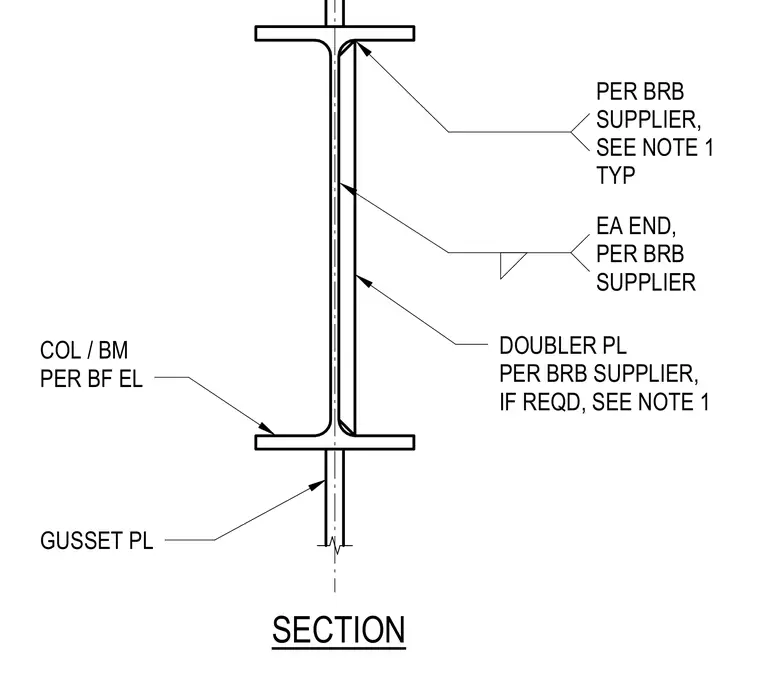

A structural steel column features a web doubler plate added per the buckling-restrained brace supplier requirements. A gusset plate connects to the column flange and web assembly. Fillet welds are applied at each end as specified by the manufacturer.
DOUBLER PL PER BRB SUPPLIER, IF REQD, SEE NOTE 1 GUSSET PL COL / BM PER BF EL SECTION EA END, PER BRB SUPPLIER PER BRB SUPPLIER, SEE NOTE 1 TYP
