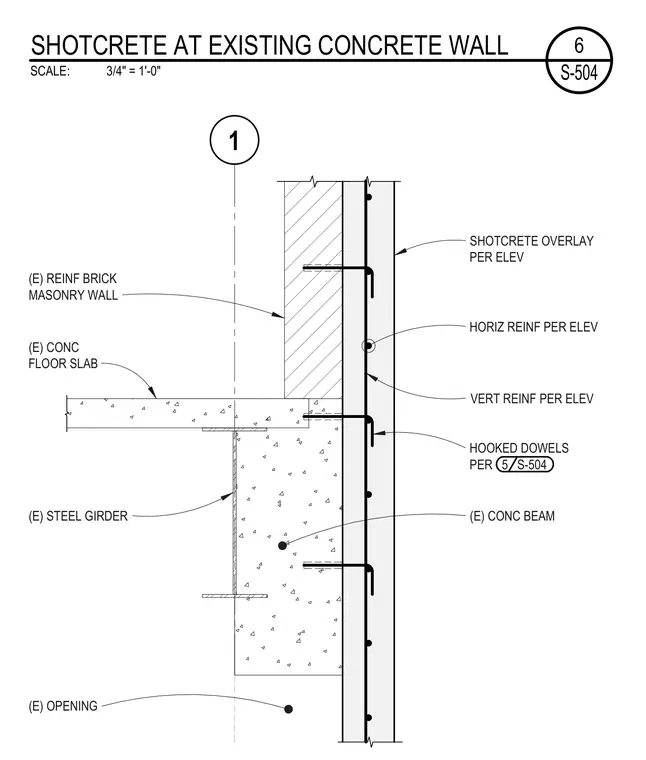

A shotcrete overlay is applied to the face of an existing concrete beam and reinforced brick masonry wall assembly. The shotcrete layer is reinforced with horizontal and vertical reinforcing bars tied back to the substrate with hooked dowels. An existing steel girder supports the existing concrete floor slab adjacent to the wall assembly.
SCALE: S-504 SHOTCRETE AT EXISTING CONCRETE WALL 6 3/4" = 1'-0" (E) STEEL GIRDER SHOTCRETE OVERLAY PER ELEV HORIZ REINF PER ELEV VERT REINF PER ELEV HOOKED DOWELS PER 5 S-504 (E) CONC FLOOR SLAB (E) REINF BRICK MASONRY WALL (E) CONC BEAM (E) OPENING 1
