Structural · S-8VPD3

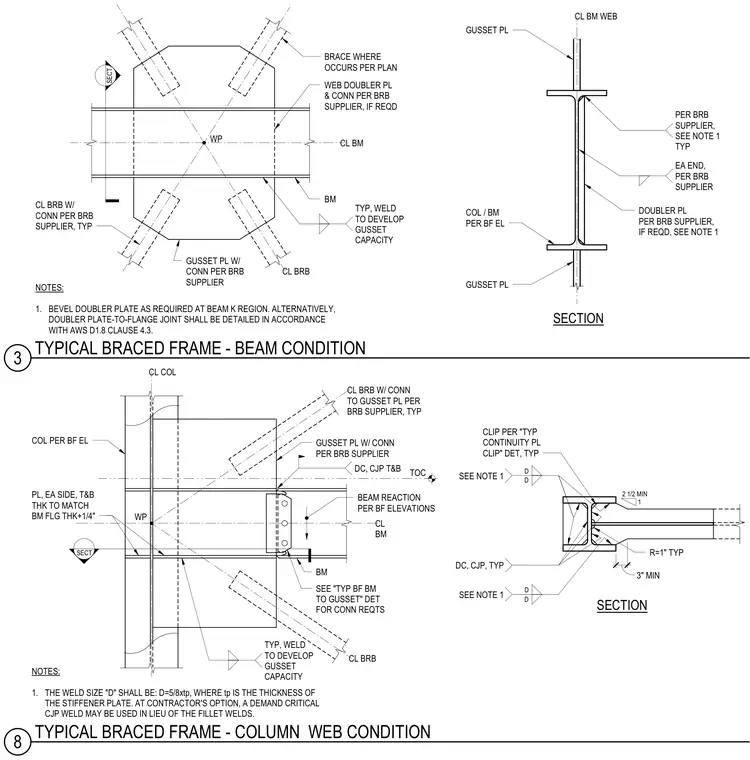

Typical Braced Frame Column Web Condition

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection

About this detail

A structural steel braced frame connection at a column web featuring gusset plates welded to the column and beam framing. Buckling-restrained braces connect to the gusset plates per the supplier requirements. Web doubler plates are provided at the column web as required, with bevels at the beam k region or detailed per AWS D1.8 clause 4.3. Top and bottom plates are provided on each side with thicknesses matching the beam flange thickness plus one-quarter inch. Demand critical complete joint penetration welds and fillet welds with size D equal to five-eighths times the stiffener plate thickness are specified.
