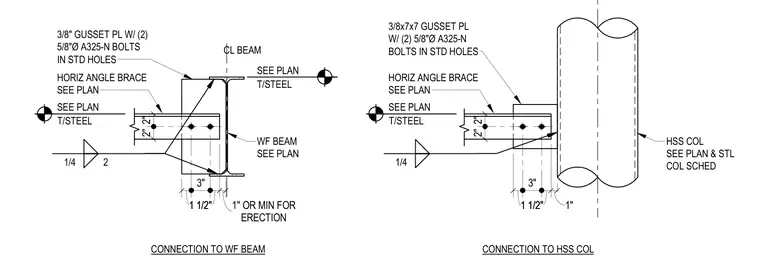

Horizontal angle bracing connects to a wide-flange beam and a hollow structural section column. The wide-flange beam connection features a three-eighths-inch gusset plate welded with a quarter-inch fillet weld and secured with two five-eighths-inch diameter A325-N bolts in standard holes. The hollow structural section column connection utilizes a three-eighths-by-seven-by-seven-inch gusset plate welded with a quarter-inch fillet weld and similarly fastened using two five-eighths-inch diameter A325-N bolts in standard holes. Edge distances and spacing dimensions are detailed for bolt layouts and erection clearances.
2" 2" 1 1/2" 3" 1 1/2" ERECTION 1" OR MIN FOR CL BEAM T/STEEL SEE PLAN WF BEAM SEE PLAN 3/8" GUSSET PL W/ (2) 5/8"Ø A325-N BOLTS IN STD HOLES HORIZ ANGLE BRACE SEE PLAN T/STEEL SEE PLAN 1/4 2 CONNECTION TO WF BEAM 2" 2" 1 1/2" 3" 1 1/2" 1" HSS COL SEE PLAN & STL COL SCHED 3/8x7x7 GUSSET PL W/ (2) 5/8"Ø A325-N BOLTS IN STD HOLES HORIZ ANGLE BRACE SEE PLAN T/STEEL SEE PLAN 1/4 CONNECTION TO HSS COL
