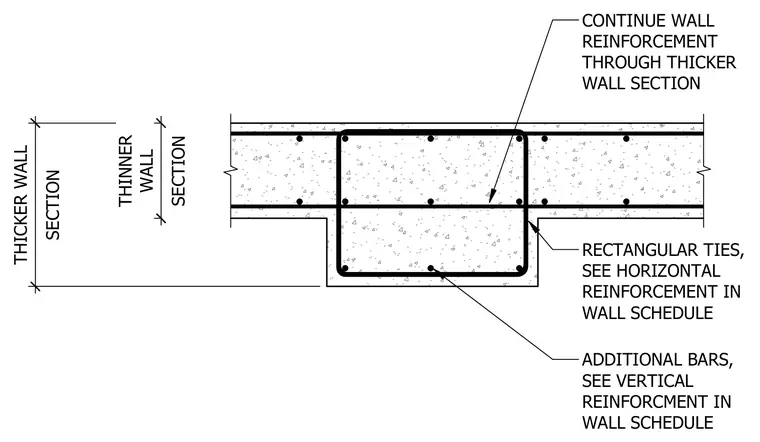

Continuous wall reinforcement continues through the thickened concrete wall section from the thinner wall section. Rectangular ties enclose the section, with sizing and spacing per the horizontal reinforcement in the wall schedule. Additional vertical reinforcing bars are placed within the thickened portion, sized per the vertical reinforcement in the wall schedule.
CONTINUE WALL REINFORCEMENT THROUGH THICKER WALL SECTION RECTANGULAR TIES, SEE HORIZONTAL REINFORCEMENT IN WALL SCHEDULE SECTION THICKER WALL SECTION THINNER WALL ADDITIONAL BARS, SEE VERTICAL REINFORCMENT IN WALL SCHEDULE
