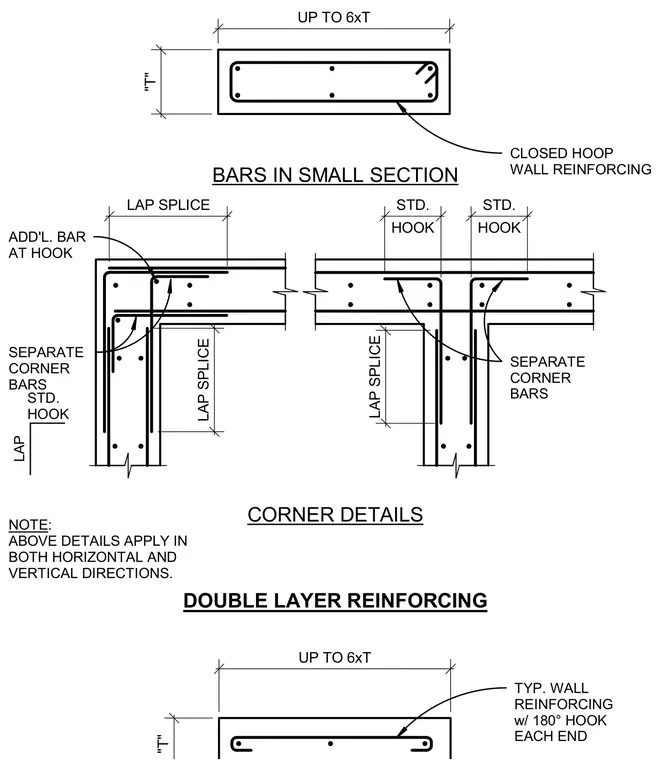

Concrete wall corner and small section details featuring double layer reinforcing with closed hoops and lap splices. Separate corner bars with standard hooks are used at wall turns, including additional bars at the hook locations. Wall reinforcing includes bars with one hundred eighty degree hooks at each end for sections up to six times thickness. These details apply in both horizontal and vertical directions.
CLOSED HOOP WALL REINFORCING CORNER DETAILS BARS IN SMALL SECTION UP TO 6xT LAP SPLICE HOOK STD. HOOK STD. SEPARATE CORNER BARS NOTE: ABOVE DETAILS APPLY IN BOTH HORIZONTAL AND VERTICAL DIRECTIONS. SEPARATE CORNER BARS TYP. WALL REINFORCING w/ 180° HOOK EACH END UP TO 6xT DOUBLE LAYER REINFORCING "T" LAP SPLICE LAP STD. HOOK "T" LAP SPLICE ADD'L. BAR AT HOOK
