Structural · S-8V8HD

Deflection and Seismic Drift Detailing at Steel Frame and Curtain Wall

Materials

Concrete Steel Timber / Wood

Elements

Beams Walls Windows Curtain Walls Ceilings Floors / Slabs Arches Bracing Connections / Plates

Connections

Beam-to-Beam Bracing Connection

About this detail

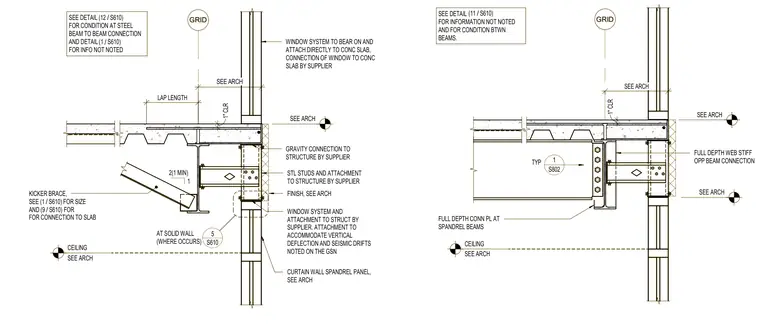

Beam connections, floor slab edges, and drift-accommodating attachments for exterior window systems and curtain wall spandrel panels. The assembly features structural steel beams and columns, a concrete slab on metal deck, and kicker braces designed to handle seismic movements. Full-depth web stiffeners and connection plates tie the framing together while leaving designated clearances for vertical deflection. Exterior wall studs, window systems, and curtain wall spandrels interface with the structural slab and framing according to architectural coordination notes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
