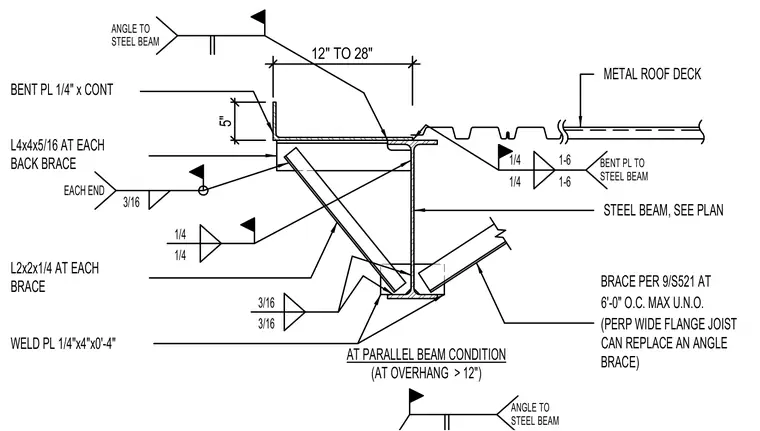

A five-inch deep joist bearing end connects to a structural steel beam sized per plan and supports a metal roof deck. A continuous quarter-inch bent plate is secured at the parallel beam condition for overhangs exceeding twelve inches with quarter-inch fillet welds. L4x4x5/16 back braces and L2x2x1/4 braces are welded to each end using three-sixteenths inch fillet welds. Additional bracing is spaced at six feet on center maximum unless noted otherwise, where a perpendicular wide flange joist can replace an angle brace. A quarter-inch by four-inch by four-inch weld plate is also provided at the connection.
STEEL BEAM, SEE PLAN WELD PL 1/4"x4"x0'-4" L4x4x5/16 AT EACH L2x2x1/4 AT EACH EACH END 3/16 3/16 3/16 (AT OVERHANG > 12") BENT PL 1/4" x CONT AT PARALLEL BEAM CONDITION 1/4 1/4 1/4 1-6 BENT PL TO STEEL BEAM ANGLE TO STEEL BEAM ANGLE TO STEEL BEAM BRACE BACK BRACE 1/4 1-6 METAL ROOF DECK BRACE PER 9/S521 AT 6'-0" O.C. MAX U.N.O. (PERP WIDE FLANGE JOIST CAN REPLACE AN ANGLE BRACE) 12" TO 28" 5"
