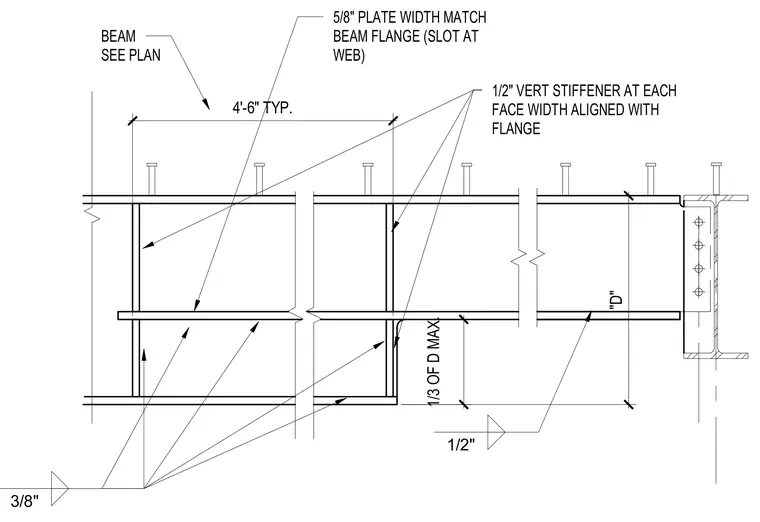

A steel beam sized per plan receives five-eighths-inch plates whose width matches the beam flange and slots through the web. One-half-inch vertical stiffeners attach at each face with widths aligned to the flange. Stiffeners maintain a typical four-foot-six-inch spacing along the span with a maximum height clearance of one-third of dimension D at the lower termination. Fillet welds measure three-eighths-inch and one-half-inch.
BEAM SEE PLAN 5/8" PLATE WIDTH MATCH BEAM FLANGE (SLOT AT WEB) 3/8" 1/2" 1/2" VERT STIFFENER AT EACH FACE WIDTH ALIGNED WITH FLANGE 1/3 OF D MAX. "D" 4'-6" TYP.
