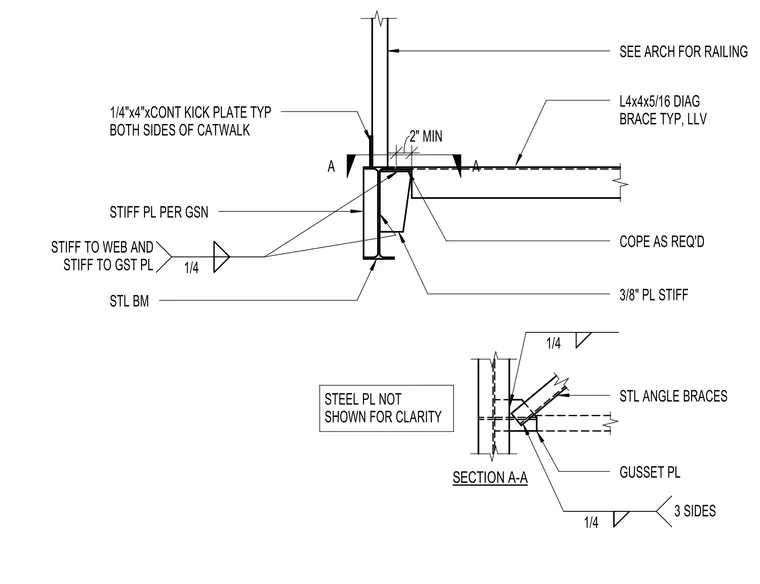

A diagonal brace connects to a steel catwalk beam. The assembly uses a structural steel angle brace connected via a gusset plate, with a quarter-inch fillet weld applied on three sides. The catwalk beam features three-eighths-inch stiffener plates welded to the web and gusset plate with quarter-inch fillet welds, along with stiffeners per general structural notes. Continuous quarter-inch by four-inch kick plates are installed on both sides of the catwalk, maintaining a minimum two-inch clearance. A steel angle branch serves as the typical diagonal brace with a coped connection as required.
A A 2" MIN SEE ARCH FOR RAILING L4x4x5/16 DIAG BRACE TYP, LLV COPE AS REQ'D 3/8" PL STIFF STL BM STIFF PL PER GSN 1/4"x4"xCONT KICK PLATE TYP BOTH SIDES OF CATWALK 1/4 STIFF TO WEB AND STIFF TO GST PL SECTION A-A GUSSET PL STEEL PL NOT SHOWN FOR CLARITY 1/4 1/4 3 SIDES STL ANGLE BRACES
