This lead-lined mullion profile incorporates an integrated between-glass Venetian blind with a tilt control mechanism and removable stops on both sides. The frame features a continuous lead lining wrapping the exterior throat opening with a plus one-inch clearance dimension. Equal spacing dimensions and specific widths of two inches and five-eighths inches govern the profile geometry. Removable stops are provided on both sides for maintenance access to the internal blinds.

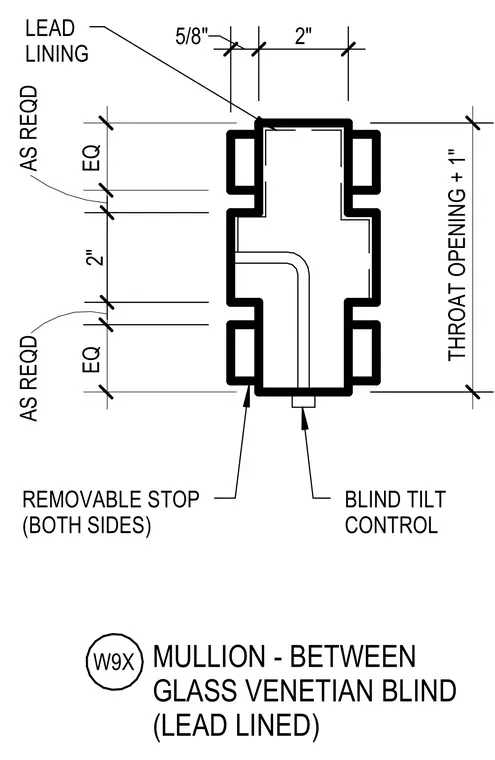

2" 5/8" 2" MULLION - BETWEEN GLASS VENETIAN BLIND (LEAD LINED) W9X REMOVABLE STOP (BOTH SIDES) BLIND TILT CONTROL AS REQD AS REQD EQ EQ LEAD LINING THROAT OPENING + 1"
