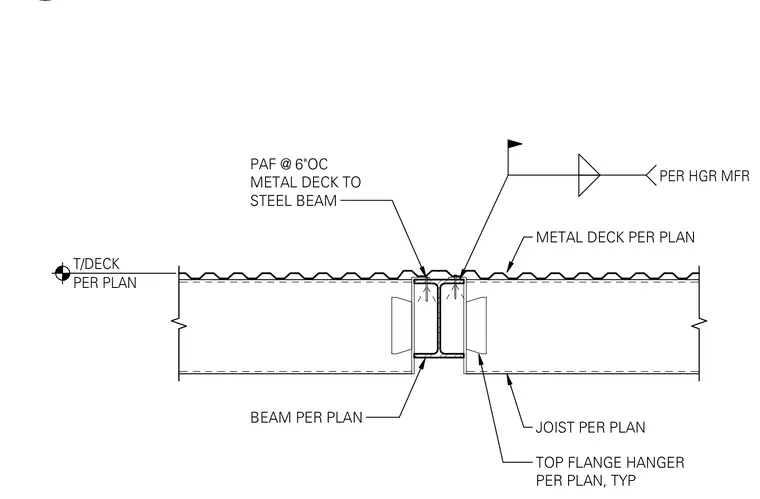

Metal deck bears over a steel beam sized per plan and is fastened with powder-actuated fasteners at six inches on center. Joists frame into the steel beam using top flange hangers typical per hanger manufacturer specifications. The top of the deck elevation is set per plan.
T/DECK PER PLAN JOIST PER PLAN BEAM PER PLAN TOP FLANGE HANGER PER PLAN, TYP PER HGR MFR METAL DECK PER PLAN PAF @ 6"OC METAL DECK TO STEEL BEAM
