A secondary structural member connects to a primary wide-flange girder using a face plate, connector plate, and screws referenced in another detail. The primary girder is routed to receive the connection hardware and includes a face plate welded to the web. Stiffener plates are welded to each end of the face plate between the girder flanges with three-sixteenths inch fillet welds. A hanger connects to the assembly with three-sixteenths inch welds, leaving the top of the hanger unwelded per manufacturer requirements.

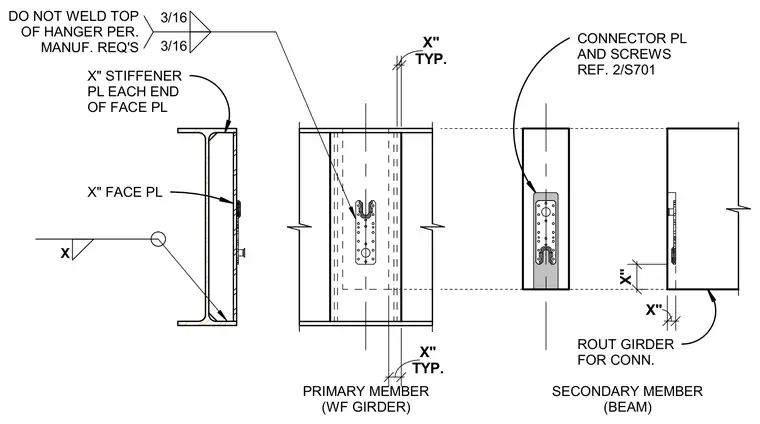

ROUT GIRDER FOR CONN. CONNECTOR PL AND SCREWS REF. 2/S701 PRIMARY MEMBER (WF GIRDER) X" SECONDARY MEMBER (BEAM) TYP. X" TYP. X" X X" FACE PL X" STIFFENER PL EACH END OF FACE PL X" 3/16 3/16 DO NOT WELD TOP OF HANGER PER. MANUF. REQ'S
