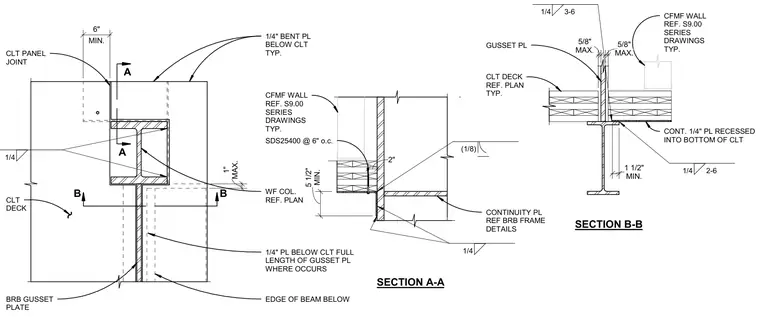

A structural steel braced frame connection integrates with cross-laminated timber decking and cold-formed metal framing walls. A gusset plate connects to the framing, flanked by a continuous one-quarter-inch plate recessed into the bottom of the cross-laminated timber deck for the full length of the gusset plate. Section A-A and Section B-B designate the framing clearances, including a one-inch maximum gap and a five-and-a-half-inch minimum dimension at the cold-formed metal framing wall fastened with SDS25400 screws at six inches on center. A one-quarter-inch bent plate is positioned below the cross-laminated timber deck, and welded connections are specified with one-quarter-inch fillet welds.
SECTION A-A SECTION B-B A A B B 1/4 (1/8) CFMF WALL REF. S9.00 SERIES DRAWINGS TYP. CLT DECK REF. PLAN TYP. GUSSET PL 1/4 3-6 1/4 2-6 WF COL. REF. PLAN 1/4" BENT PL BELOW CLT TYP. 1/4 BRB GUSSET PLATE CLT DECK CFMF WALL REF. S9.00 SERIES DRAWINGS TYP. CONTINUITY PL REF BRB FRAME DETAILS MIN. 5 1/2" 2" SDS25400 @ 6" o.c. MAX. 5/8" MAX. 5/8" MIN. 1 1/2" CONT. 1/4" PL RECESSED INTO BOTTOM OF CLT MAX. 1" EDGE OF BEAM BELOW 1/4" PL BELOW CLT FULL LENGTH OF GUSSET PL WHERE OCCURS MIN. 6" CLT PANEL JOINT
