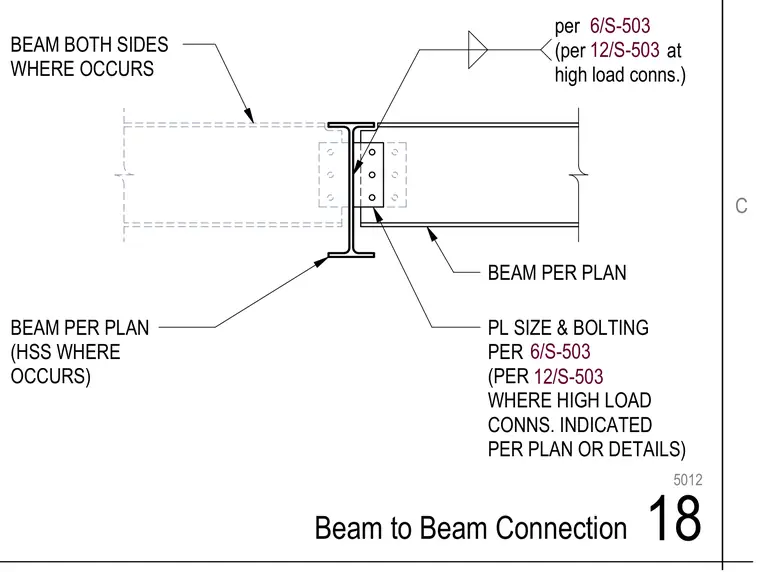

A supported steel beam frames into the web of a supporting wide-flange beam or hollow structural section using a bolted shear tab connection. The plate size and bolt configuration are specified per standard structural details, with alternative sizes applied at high-load connections indicated on the structural plans. Secondary framing beams occur on both sides of the supporting member where indicated on the structural plans.
BEAM BOTH SIDES WHERE OCCURS BEAM PER PLAN per (per at high load conns.) PL SIZE & BOLTING PER (PER WHERE HIGH LOAD CONNS. INDICATED PER PLAN OR DETAILS) BEAM PER PLAN (HSS WHERE OCCURS) 6/S-503 6/S-503 12/S-503 12/S-503 C 18 Beam to Beam Connection 5012
