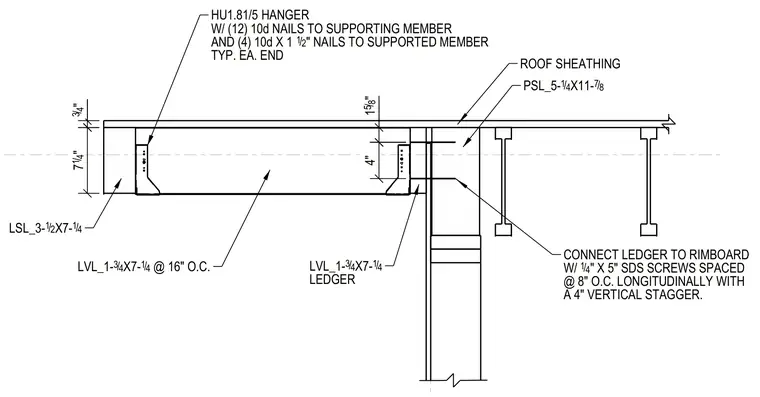

Roof sheathing bears on parallel strand lumber measuring five and one-quarter inches by eleven and seven-eighths inches, supported by engineered wood framing. Laminated veneer lumber joists measuring one and three-quarters inches by seven and one-quarter inches are spaced at sixteen inches on center. An HU1.81/5 hanger secures the framing using twelve 10d nails to the supporting member and four 10d by one and one-half inch nails to the supported member at each end. A ledger measuring one and three-quarters inches by seven and one-quarter inches connects to the rim board using one-quarter inch by five-inch self-drilling screws spaced at eight inches on center longitudinally with a four-inch vertical stagger.
PSL_5- 1 4 / X11- 7 8 / ROOF SHEATHING LVL_1- 3 4 / X7- 1 4 / @ 16" O.C. LSL_3- 1 2 / X7- 1 4 / LVL_1- 3 4 / X7- 1 4 / LEDGER HU1.81/5 HANGER W/ (12) 10d NAILS TO SUPPORTING MEMBER AND (4) 10d X 1 1 2 / " NAILS TO SUPPORTED MEMBER TYP. EA. END A 4" VERTICAL STAGGER. @ 8" O.C. LONGITUDINALLY WITH W/ 1 4 / " X 5" SDS SCREWS SPACED CONNECT LEDGER TO RIMBOARD 34 / " 7 14 / " 1 58 / " 4"
