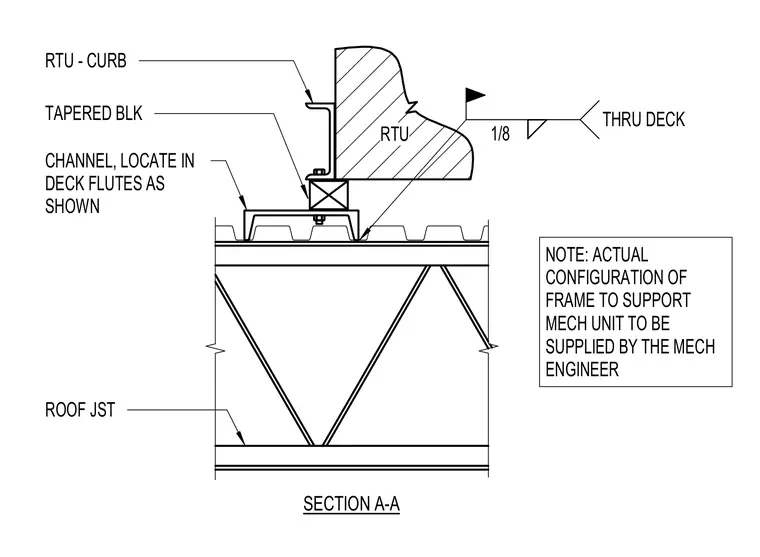

A rooftop unit curb bears on a tapered block and steel channel located within the deck flutes of a metal deck supported by an open-web roof joist. The steel channel is secured through the deck. A field weld connects the assembly through the deck as indicated by the weld symbol. The actual configuration of the frame to support the mechanical unit is to be supplied by the mechanical engineer.
SECTION A-A ROOF JST RTU - CURB TAPERED BLK CHANNEL, LOCATE IN DECK FLUTES AS SHOWN RTU NOTE: ACTUAL CONFIGURATION OF FRAME TO SUPPORT MECH UNIT TO BE SUPPLIED BY THE MECH ENGINEER 1/8 THRU DECK
