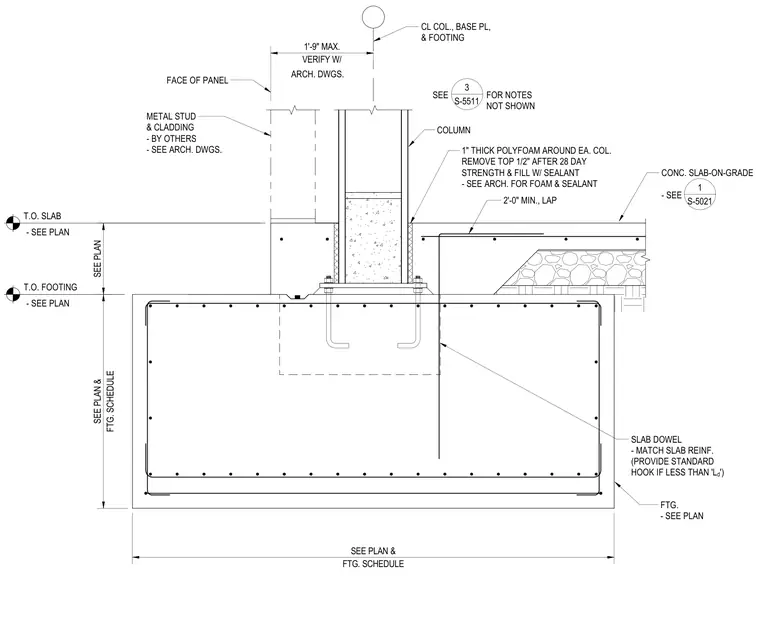

An exterior concrete column footing supports a steel column on a base plate with anchor bolts. A one-inch thick polyfoam joint wraps around each column, with the top half-inch removed after twenty-eight-day strength is achieved and filled with sealant. A concrete slab-on-grade abuts the column foundation, tied with slab dowels matching the slab reinforcement and featuring a two-foot minimum lap splice. Exterior metal studs and cladding are positioned adjacent to the footing per architectural drawings.
T.O. FOOTING - SEE PLAN COLUMN SEE FOR NOTES NOT SHOWN 3 S-5511 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. FOR FOAM & SEALANT CL COL., BASE PL, & FOOTING FACE OF PANEL METAL STUD & CLADDING - BY OTHERS - SEE ARCH. DWGS. VERIFY W/ 1'-9" MAX. SEE PLAN ARCH. DWGS. 2'-0" MIN., LAP FTG. - SEE PLAN SLAB DOWEL - MATCH SLAB REINF. (PROVIDE STANDARD HOOK IF LESS THAN 'L d ') FTG. SCHEDULE SEE PLAN & CONC. SLAB-ON-GRADE - SEE FTG. SCHEDULE SEE PLAN & T.O. SLAB - SEE PLAN 1 S-5021
