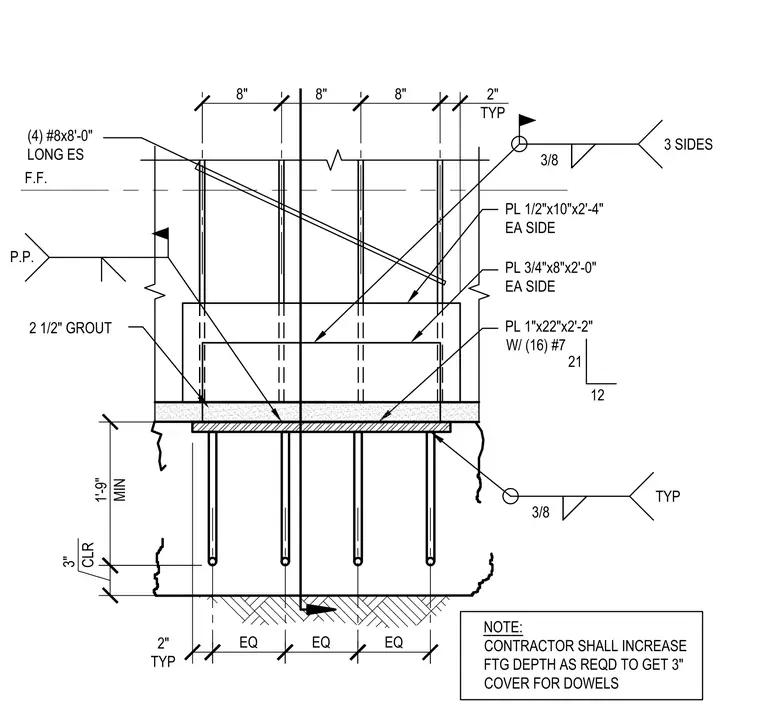

This assembly secures a concrete panel to a foundation using a 1-inch by 22-inch by 2-foot-2-inch base plate anchored by sixteen number 7 dowels. The connection includes 3/4-inch by 8-inch by 2-foot-0-inch and 1/2-inch by 10-inch by 2-foot-4-inch stiffener plates welded to each side with 3/8-inch fillet welds. Four number 8 bars, 8 feet long, are embedded in the panel, extending 1 foot 9 inches minimum into the footing with 3 inches of concrete cover. A 2 1/2-inch grout pad sits between the panel base and the footing. The contractor must increase the footing depth as required to maintain the specified 3-inch cover for the dowels.
Text on the drawing
1'-9" MIN 3" CLR 2 1/2" GROUT (4) #8x8'-0" LONG ES PL 1"x22"x2'-2" W/ (16) #7 PL 3/4"x8"x2'-0" EA SIDE PL 1/2"x10"x2'-4" EA SIDE 17 - 8" 2" TYP EQ 3/8 TYP 3/8 3 SIDES 21 12 2" TYP EQ EQ 8" 8" NOTE: CONTRACTOR SHALL INCREASE FTG DEPTH AS REQD TO GET 3" COVER FOR DOWELS 4" 15 PANEL HOLDOWN CONNECTION N.T.S. F.F. P.P.
