Cold-formed steel studs measuring six inches spaced at sixteen inches on center connect to a structural steel beam supporting a concrete slab on metal deck. A vertical slip connection with one-inch minimum movement is provided at the head of the stud wall per the cold-formed steel designer. The slab edge detail coordinates with architectural drawings for metal panels and glazing.

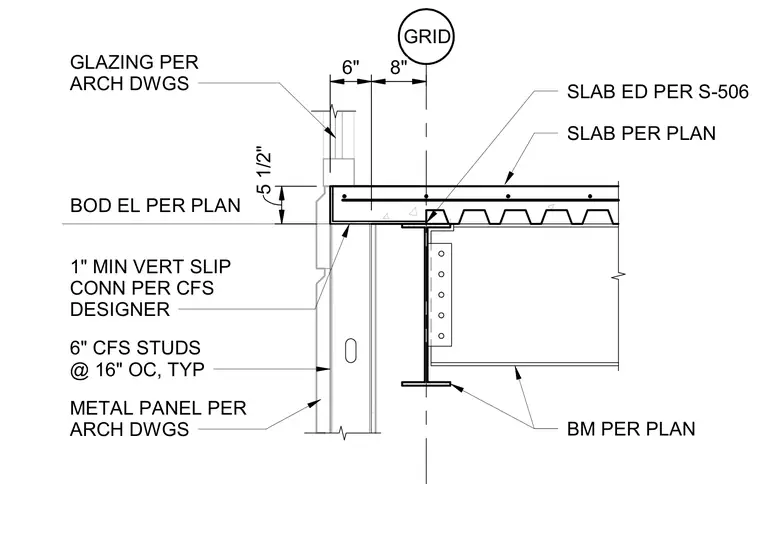

SLAB PER PLAN BM PER PLAN BOD EL PER PLAN 116' - 2 1/2" GRID 6" 8" SLAB ED PER S-506 METAL PANEL PER ARCH DWGS GLAZING PER ARCH DWGS 6" CFS STUDS @ 16" OC, TYP 1" MIN VERT SLIP CONN PER CFS DESIGNER 5 1/2"
