Structural · S-8RXNW

Sheet Metal Screw Edge Distance and Spacing Schedule

Materials

Elements

About this detail

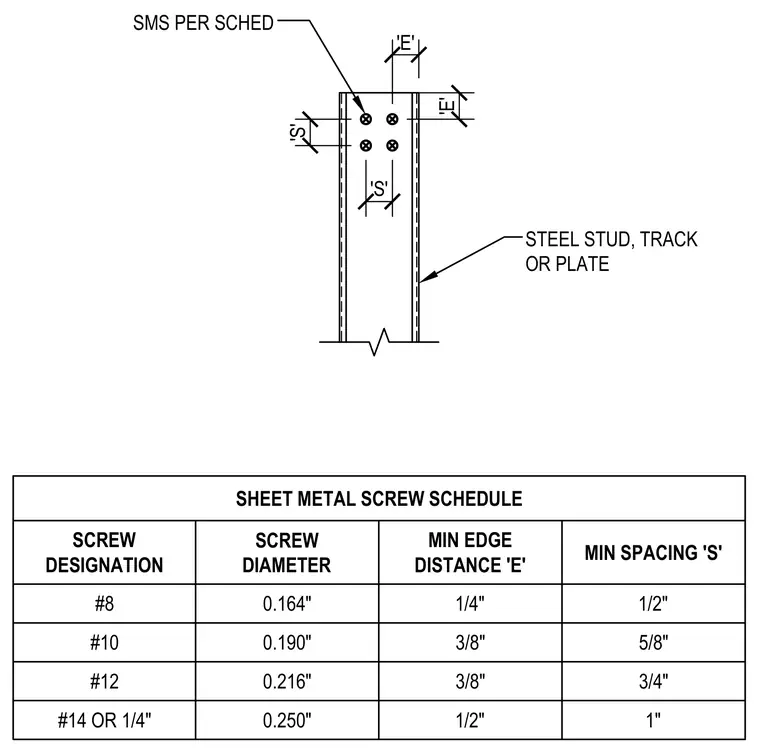

Minimum edge distance and spacing requirements for sheet metal screws used in cold-formed steel framing are established by this diagram and schedule. Sheet metal screws are installed in a steel stud, track, or plate, indicating spacing 'S' and edge distance 'E'. The accompanying sheet metal screw schedule lists designations for #8, #10, #12, and #14 or 1/4 inch screws alongside their respective screw diameters, minimum edge distances, and minimum spacings.
