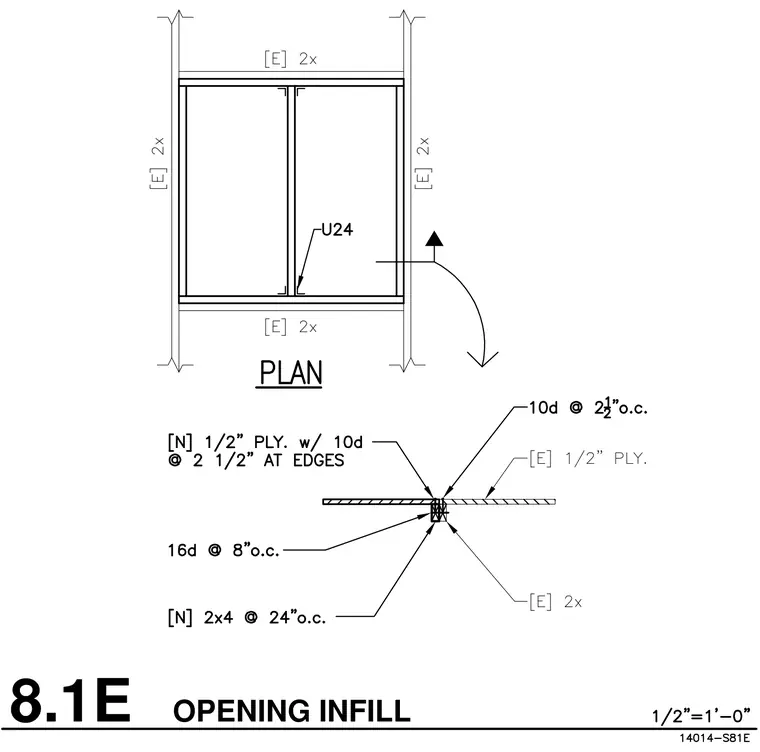

An opening infill detail showing a new 2x4 at twenty-four inches on center framed into existing construction with a U24 connector. New one-half-inch plywood is fastened with ten-penny nails at two and one-half inches on center at the edges, adjacent to existing one-half-inch plywood. Sixteen-penny nails are spaced at eight inches on center. Existing framing members are designated as two-times.
