Structural · S-8RBPB

CMU Wall Corner and Intersection Reinforcing Details

Materials

Concrete Reinforced Concrete Masonry / CMU

Elements

Beams Walls Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

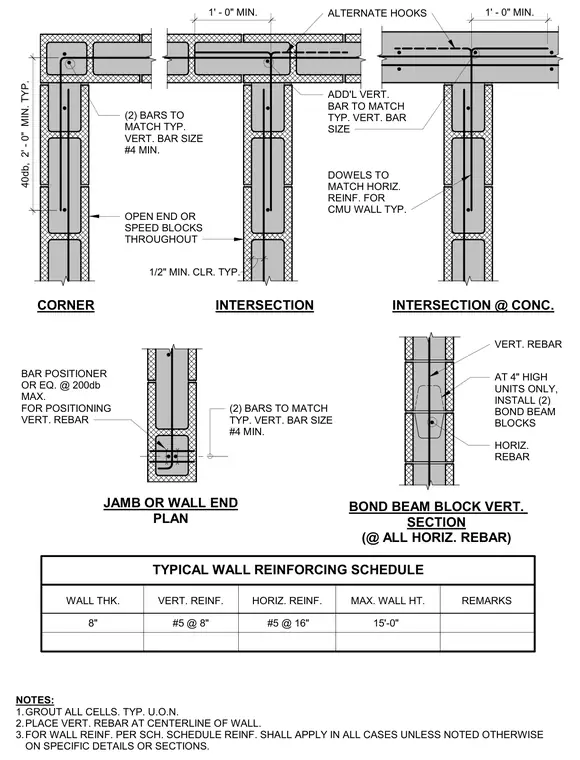

These concrete masonry unit construction details show standard reinforcing configurations for corners, intersecting walls, jambs, and bond beams. Vertical rebar is placed at the centerline of the fully grouted cells with a minimum half-inch clearance and positioned using bar positioners spaced at a maximum of two hundred bar diameters. Open-end or speed blocks are specified throughout, with specific lap splices, alternate hooks, and dowels matching the horizontal and vertical reinforcing schedules. A companion typical wall reinforcing schedule defines wall thickness, vertical and horizontal bar sizes and spacing, and maximum wall height restrictions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
