A concrete truck dock retaining wall comprises a twelve-inch wide concrete wall reinforced with number five bars at twelve inches on center each way on each face. The wall sits atop a continuous concrete footing with number six longitudinal bars top and bottom, and number five ties at eight inches on center. A one and one-half inch square by one-eighth inch guard rail post is anchored into a two and one-half inch square by one-quarter inch thick by zero-foot eight-inch sleeve cast into the top of the wall. A wall drain is coordinated with civil and landscape drawings, and a three-quarter inch chamfer is detailed at the top outside corner. At the contractor's option, grade beam reinforcement and footing reinforcement may be lapped together.

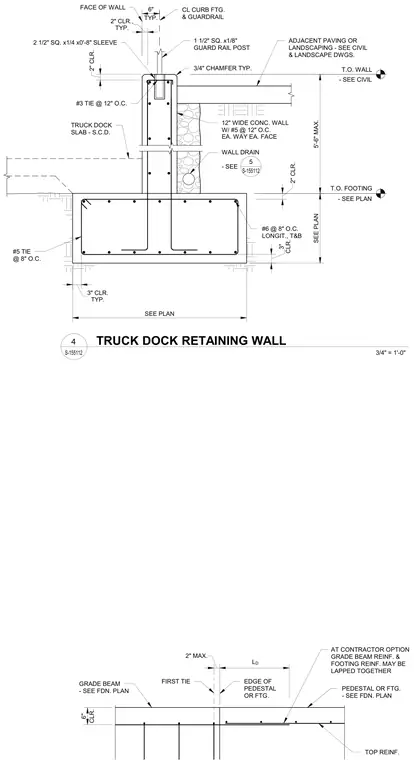

TYP. 2" CLR., TYP. 6" CL CURB FTG. & GUARDRAIL FACE OF WALL 2 1/2" SQ. x1/4 x0'-8" SLEEVE 2" CLR. #3 TIE @ 12" O.C. TRUCK DOCK SLAB - S.C.D. #5 TIE @ 8" O.C. SEE PLAN #6 @ 8" O.C. LONGIT., T&B T.O. FOOTING - SEE PLAN 12" WIDE CONC. WALL W/ #5 @ 12" O.C. EA. WAY EA. FACE ADJACENT PAVING OR LANDSCAPING - SEE CIVIL & LANDSCAPE DWGS. 3/4" CHAMFER TYP. 1 1/2" SQ. x1/8" GUARD RAIL POST 2" CLR. TYP. 3" CLR. CLR. 3" SEE PLAN 5'-6" MAX. T.O. WALL - SEE CIVIL WALL DRAIN - SEE 5 S-155112 CLR. 6" 2" MAX. GRADE BEAM - SEE FDN. PLAN FIRST TIE EDGE OF PEDESTAL OR FTG. L D PEDESTAL OR FTG. - SEE FDN. PLAN TOP REINF. AT CONTRACTOR OPTION GRADE BEAM REINF. & FOOTING REINF. MAY BE LAPPED TOGETHER S-155112 3/4" = 1'-0" 4 TRUCK DOCK RETAINING WALL
