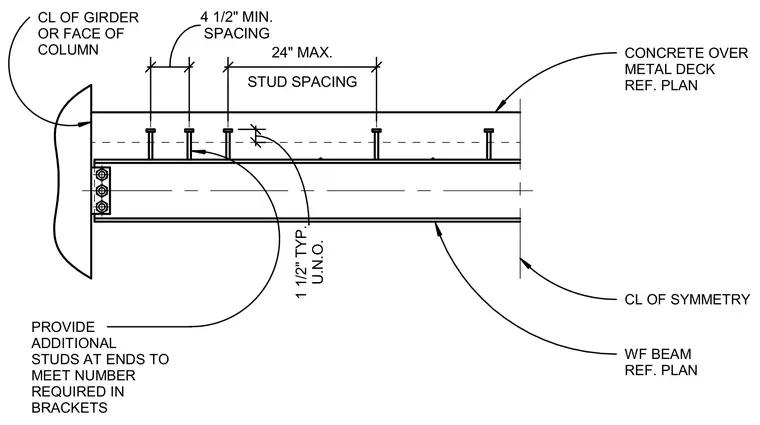

A concrete slab over metal deck bears parallel to a wide flange beam, utilizing welded shear studs for composite action. Shear studs are spaced at a maximum of twenty-four inches on center typically, with a four-and-one-half-inch minimum spacing. Additional studs are provided at ends to meet the number required in brackets. The top of the beam maintains a one-and-one-half-inch clearance typically unless noted otherwise.
CL OF SYMMETRY WF BEAM REF. PLAN CONCRETE OVER METAL DECK REF. PLAN PROVIDE ADDITIONAL STUDS AT ENDS TO MEET NUMBER REQUIRED IN BRACKETS CL OF GIRDER OR FACE OF COLUMN SPACING 4 1/2" MIN. STUD SPACING 24" MAX. U.N.O. 1 1/2" TYP.
