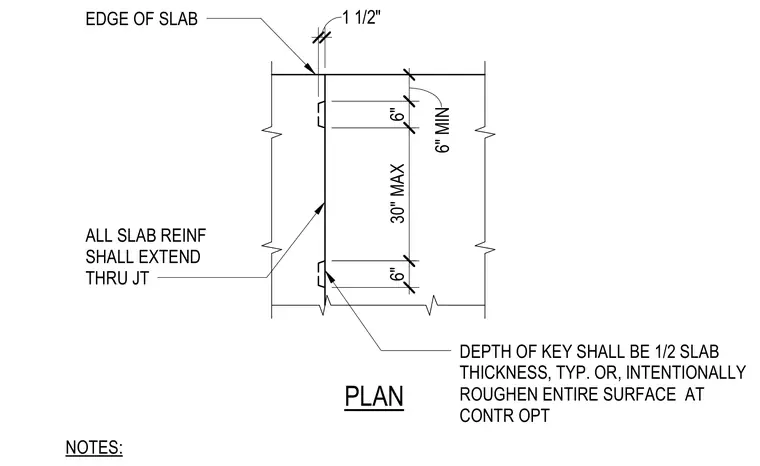

A concrete slab construction joint features a keyway with a depth equal to half the slab thickness, or alternatively, an intentionally roughened entire surface at the contractor's option. All slab reinforcement extends through the joint continuously. Edge clearances and dimensions require a maximum thirty-inch spacing for key segments with six-inch minimum edge distances.
6" 30" MAX 6" 6" MIN EDGE OF SLAB ALL SLAB REINF SHALL EXTEND THRU JT DEPTH OF KEY SHALL BE 1/2 SLAB THICKNESS, TYP. OR, INTENTIONALLY ROUGHEN ENTIRE SURFACE AT CONTR OPT NOTES: PLAN 1 1/2" 30" MAX
