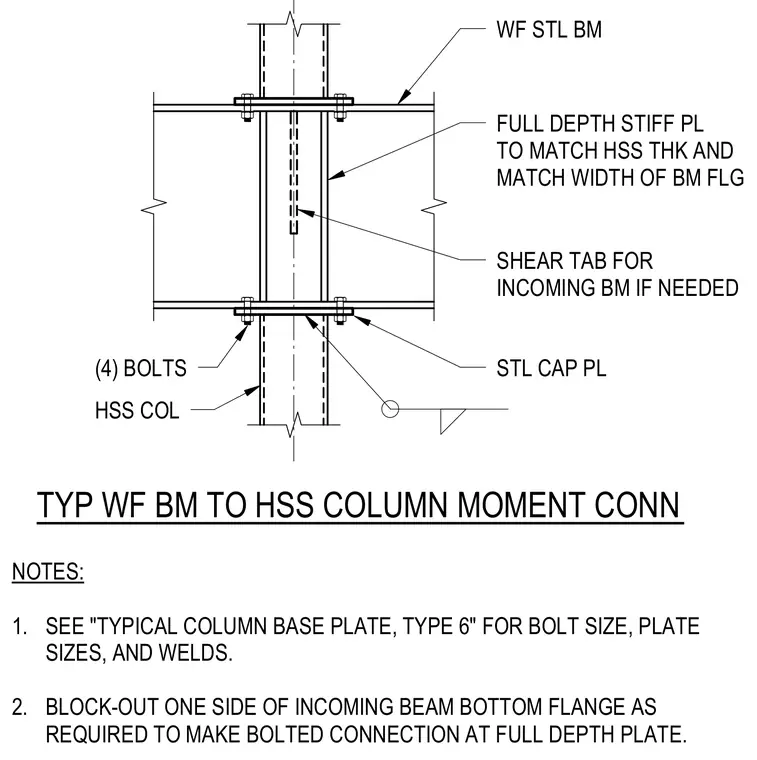

A wide flange steel beam connects to a hollow structural section column through a steel cap plate and full depth stiffener plates matching the hollow structural section thickness and beam flange width. A shear tab is provided for the incoming beam if needed. Four bolts secure the connection at the cap plate and beam flanges. Block-out one side of the incoming beam bottom flange as required to make the bolted connection at the full depth plate.
NOTES: 1. SEE "TYPICAL COLUMN BASE PLATE, TYPE 6" FOR BOLT SIZE, PLATE SIZES, AND WELDS. 2. BLOCK-OUT ONE SIDE OF INCOMING BEAM BOTTOM FLANGE AS REQUIRED TO MAKE BOLTED CONNECTION AT FULL DEPTH PLATE. TYP WF BM TO HSS COLUMN MOMENT CONN WF STL BM FULL DEPTH STIFF PL TO MATCH HSS THK AND MATCH WIDTH OF BM FLG STL CAP PL SHEAR TAB FOR INCOMING BM IF NEEDED HSS COL (4) BOLTS
