Structural · S-8R3A5

Wide Flange Beam Single Plate Shear Connection with Slotted Holes

Materials

Steel

Elements

Beams Connections / Plates

Connections

Bolted Connection

About this detail

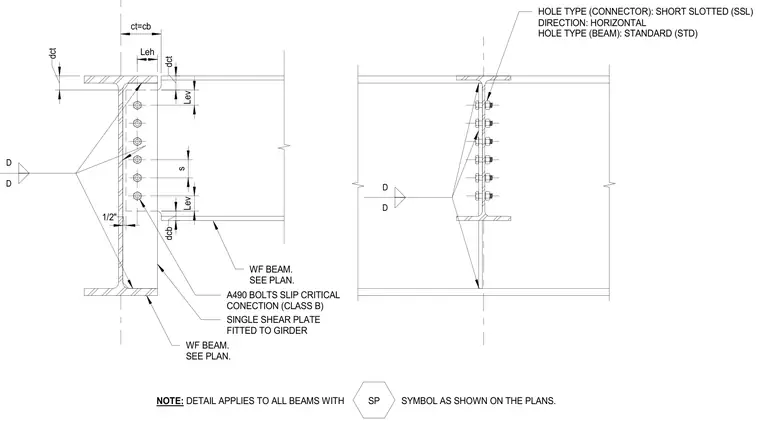

A wide flange beam frames into a wide flange girder using a single shear plate fitted and connected to the girder web. The connection utilizes ASTM A490 slip critical bolts in a Class B configuration. The connector plate features horizontal short slotted holes while the beam web uses standard holes. Edge distances, spacing, and clearances are indicated by variables including Leh, Lev, dct, dcb, ct, cb, and s.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
