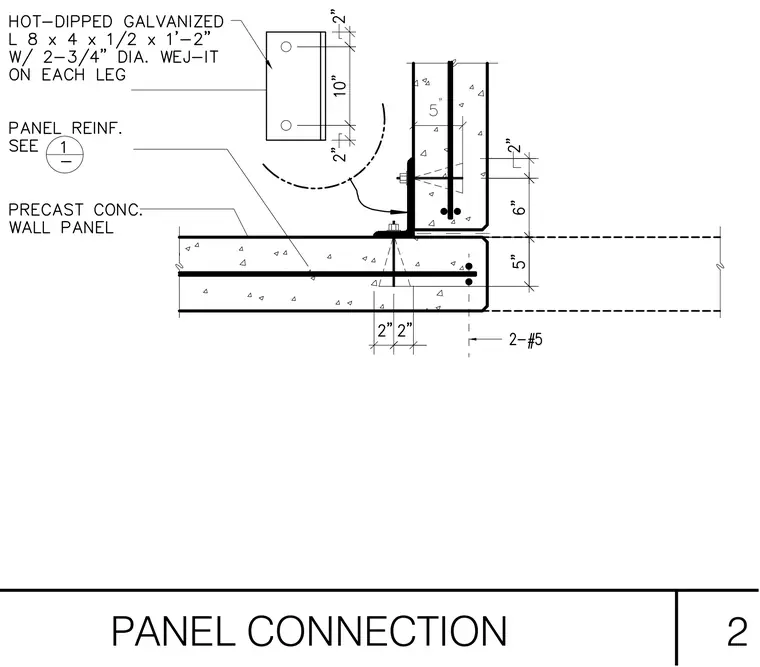

Precast concrete wall panels connect at a corner using a hot-dipped galvanized 8x4x1/2 inch angle measuring 1'-2" long, secured with two 3/4 inch diameter Wej-It expansion anchors on each leg. The concrete panels feature reinforcing steel sized per plan, with specific panel thicknesses and edge clearances indicated by dimensions. An embedded anchor plate connects to the structural angle with a bolt fastener at the panel joint.
