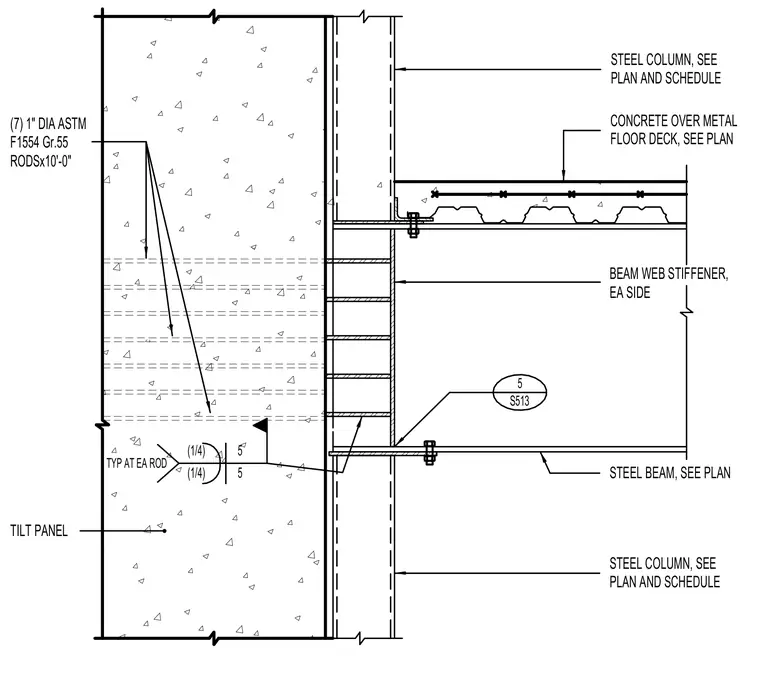

A steel beam frames into a structural steel column adjacent to a tilt-up concrete wall panel. Seven one-inch diameter ASTM F1554 Grade 55 anchor rods, each ten feet long, embed into the concrete panel. A steel beam connects to the column with web stiffeners on each side. Concrete over a metal floor deck bears on the structural framing. Fillet welds secure the connection components as indicated on the drawing.
5 S513 TYP AT EA ROD 5 5 (7) 1" DIA ASTM F1554 Gr.55 TILT PANEL STEEL COLUMN, SEE PLAN AND SCHEDULE STEEL BEAM, SEE PLAN BEAM WEB STIFFENER, EA SIDE (1/4) (1/4) RODSx10'-0" CONCRETE OVER METAL FLOOR DECK, SEE PLAN STEEL COLUMN, SEE PLAN AND SCHEDULE
