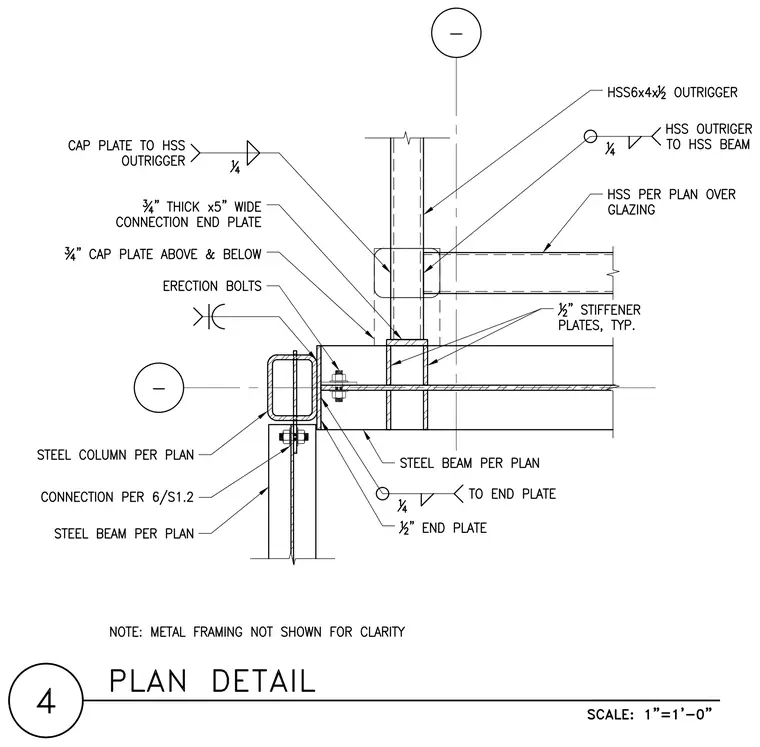

An HSS6x4x1/2 outrigger frames into a steel beam per plan, utilizing a three-quarter-inch thick by five-inch wide connection end plate welded with a quarter-inch fillet weld. Three-quarter-inch cap plates are located above and below at the connection, tied back to a steel column per plan with erection bolts. A half-inch end plate and half-inch typical stiffener plates reinforce the steel beam assembly. An additional HSS member per plan runs over the glazing, connected to the outrigger with a quarter-inch fillet weld. Note that metal framing is omitted for clarity.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
