A glued laminated timber beam bears directly onto a column notch with a two-and-a-half-inch typical dimension. A three-eighths-inch plate with three five-eighths-inch by seven-inch smooth A304 stainless steel pins is centered in the column with typical countersinking and plugging. A one-quarter-inch gap is provided typically on each side.

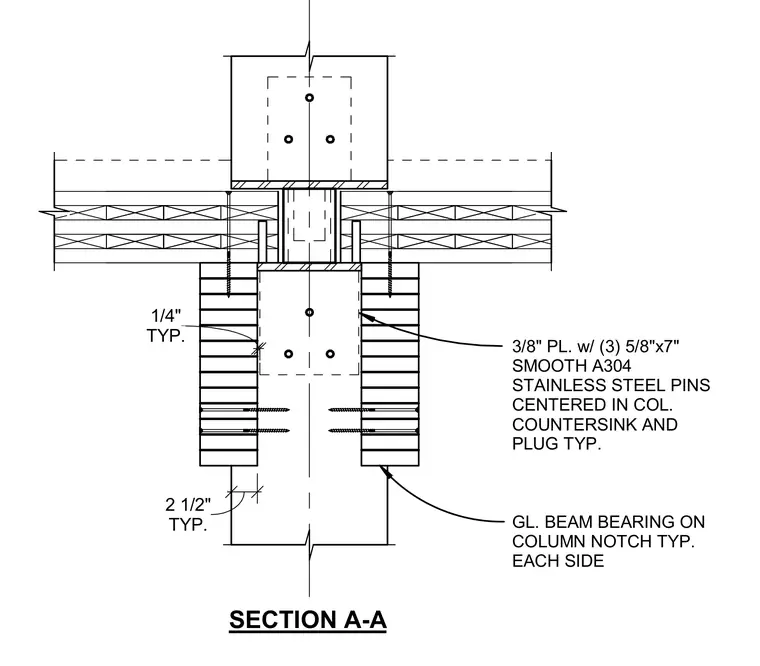

SECTION A-A TYP. 2 1/2" 3/8" PL. w/ (3) 5/8"x7" SMOOTH A304 STAINLESS STEEL PINS CENTERED IN COL. COUNTERSINK AND PLUG TYP. TYP. 1/4" GL. BEAM BEARING ON COLUMN NOTCH TYP. EACH SIDE
