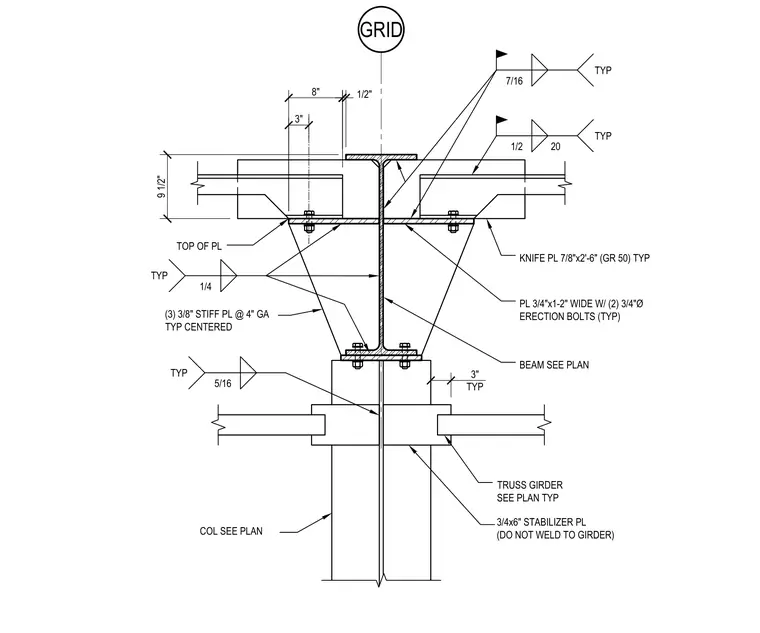

A structural steel truss girder frames into a column utilizing a 7/8 inch by 2 foot 6 inch Grade 50 knife plate welded with a 7/16 inch fillet weld. Three 3/8 inch stiffener plates spaced at 4 inches gauge are centered beneath the knife plate and welded with 1/4 inch fillet welds. A 3/4 inch by 1 foot 2 inch wide plate with two 3/4 inch diameter erection bolts provides temporary connection. A 3/4 inch by 6 inch stabilizer plate is left unwelded to the girder and welded to the column with a 5/16 inch fillet weld.
9 1/2" 3" COL SEE PLAN TRUSS GIRDER SEE PLAN TYP BEAM SEE PLAN (3) 3/8" STIFF PL @ 4" GA TYP CENTERED 7/16 TYP GRID 1/2 20 TYP KNIFE PL 7/8"x2'-6" (GR 50) TYP 1/4 TYP 5/16 TYP 8" 1/2" PL 3/4"x1-2" WIDE W/ (2) 3/4"Ø ERECTION BOLTS (TYP) 3/4x6" STABILIZER PL (DO NOT WELD TO GIRDER) TOP OF PL 3" TYP
