S-8QFC7 — Typical Tie Beam To Pile Cap Connection Detail

Structural · S-8QFC7

Typical Tie Beam To Pile Cap Connection Detail

Units: imperial
Sheet: S001
Discipline: Structural

Materials

Elements

Beams Columns Connections / Plates Foundations / Footings Reinforcing

Connections

Base Plate / Anchorage

Text on the drawing

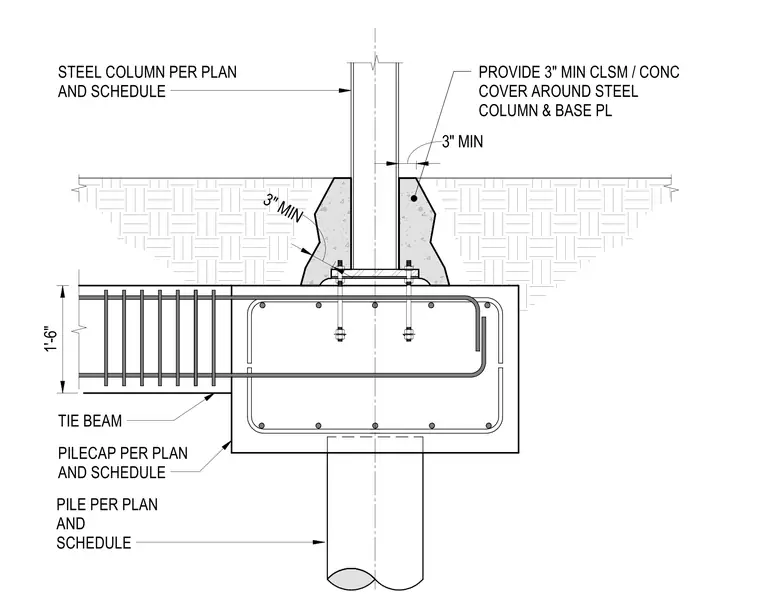

PROVIDE 3" MIN CLSM / CONC COVER AROUND STEEL COLUMN & BASE PL STEEL COLUMN PER PLAN AND SCHEDULE PILECAP PER PLAN AND SCHEDULE PILE PER PLAN AND SCHEDULE 1'-6" TIE BEAM 3" MIN 3" MIN
