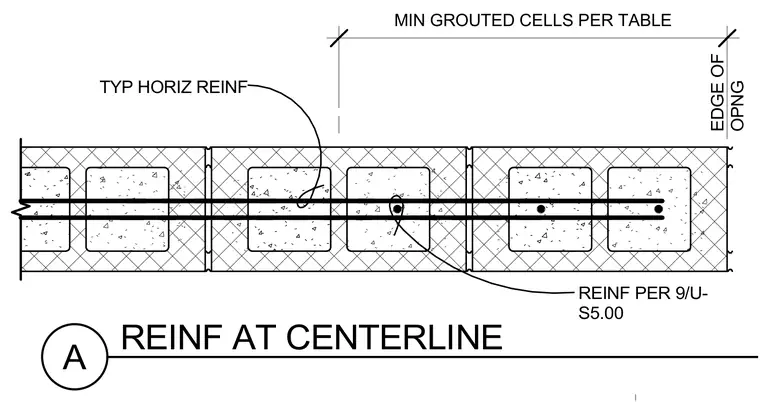

Horizontal reinforcement is centered within the concrete masonry unit cells, requiring minimum grouted cells per the structural table. Typical horizontal reinforcement runs continuously through the wall cores, supplemented by specific reinforcing bars at the edge of the opening as detailed in reference 9/U-S5.00.
TYP HORIZ REINF EDGE OF OPNG REINF PER 9/U- S5.00 A REINF AT CENTERLINE MIN GROUTED CELLS PER TABLE
