Structural · S-8Q8YF

Steel Column Bearing At Concrete Pier

Materials

Concrete Steel Masonry / CMU

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

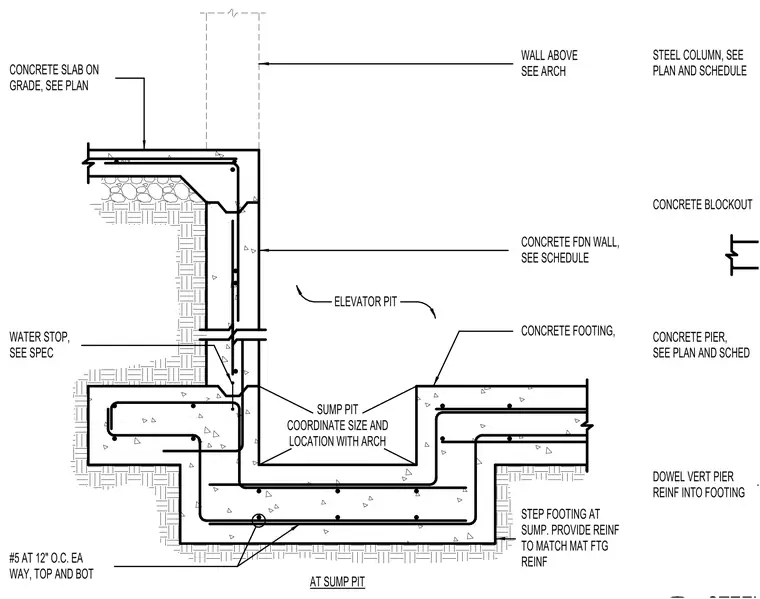

A reinforced concrete elevator pit integrates with a sump pit, stepping down from a concrete slab on grade and foundation wall. The mat footing is reinforced with number 5 bars at twelve inches on center each way, top and bottom, matching the main footing reinforcement. A water stop is specified per the project specification at the vertical joint. Vertical pier reinforcing dowels extend into the footing, supporting a concrete pier and concrete blockout. The sump pit size and location are coordinated with the architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
