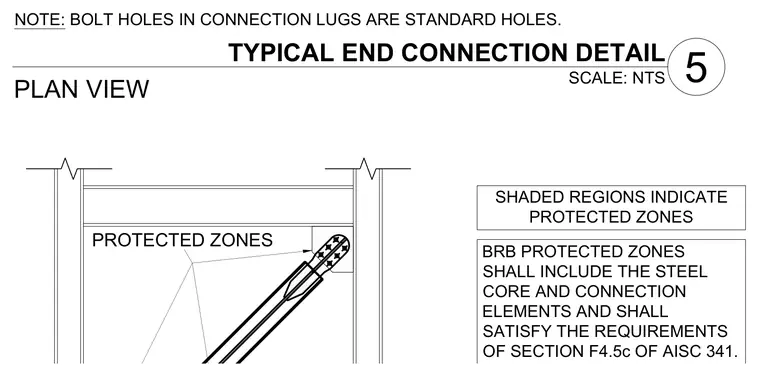

This plan view details the end connection for a buckling-restrained brace framing into a structural steel assembly. Shaded regions designate protected zones that encompass both the steel core and connection elements in compliance with AISC 341 section F4.5c. Bolt holes located within the connection lugs are detailed as standard holes.
PROTECTED ZONES SHADED REGIONS INDICATE PROTECTED ZONES BRB PROTECTED ZONES SHALL INCLUDE THE STEEL CORE AND CONNECTION ELEMENTS AND SHALL SATISFY THE REQUIREMENTS OF SECTION F4.5c OF AISC 341. PLAN VIEW 5 TYPICAL END CONNECTION DETAIL SCALE: NTS NOTE: BOLT HOLES IN CONNECTION LUGS ARE STANDARD HOLES.
