An L3x3x1/4 angle provides slab support at all four sides of a steel column where the typical floor deck support is interrupted. An eighteen-gauge closure plate spans between the column flanges where stiffener plates do not occur. Fillet welds of 3/16 inch and 1/8 inch size connect the assembly components per the structural drawings, with beams framing into the column flanges.

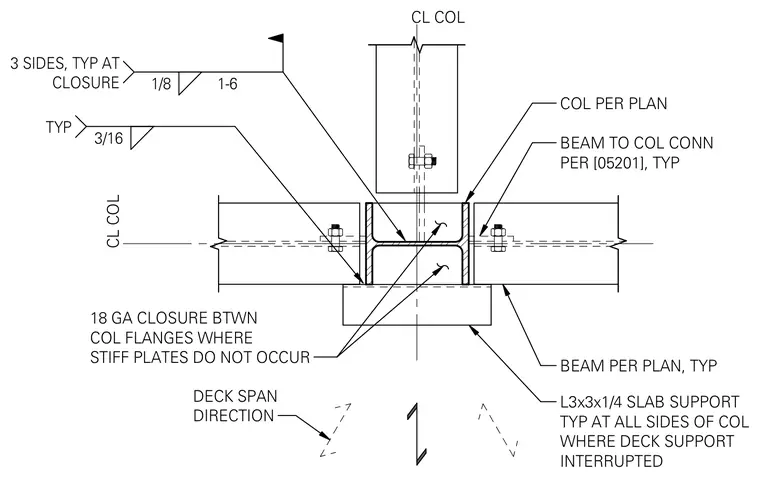

CL COL CL COL 3/16 TYP COL PER PLAN BEAM TO COL CONN PER [05201], TYP BEAM PER PLAN, TYP L3x3x1/4 SLAB SUPPORT TYP AT ALL SIDES OF COL WHERE DECK SUPPORT INTERRUPTED DECK SPAN DIRECTION 1/8 1-6 3 SIDES, TYP AT CLOSURE 18 GA CLOSURE BTWN COL FLANGES WHERE STIFF PLATES DO NOT OCCUR
