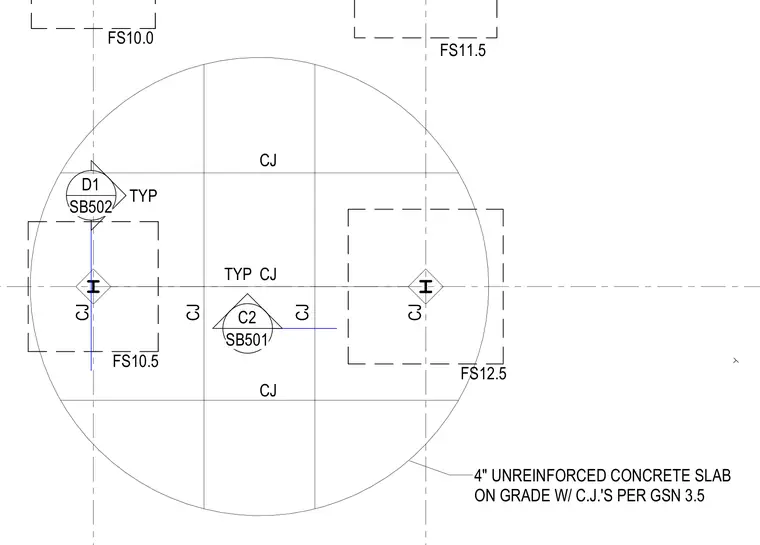

A four-inch unreinforced concrete slab on grade features control joints arranged per general structural notes. Finished slab elevations and column locations are dimensioned across the plan layout. Control joints are placed typically throughout the slab area to accommodate movement.
FS12.5 FS11.5 FS10.0 FS10.5 CJ CJ CJ CJ CJ C2 SB501 4" UNREINFORCED CONCRETE SLAB ON GRADE W/ C.J.'S PER GSN 3.5 CJ CJ D1 SB502 TYP TYP
