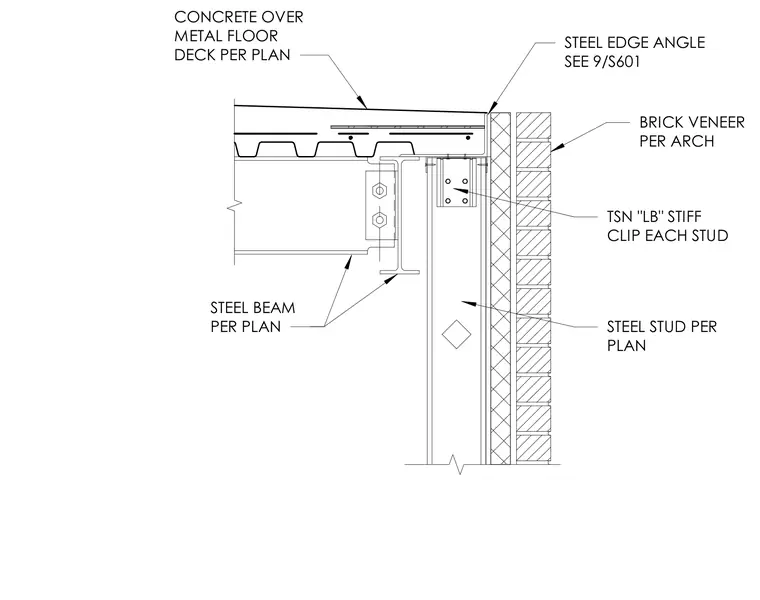

Concrete over metal floor deck bears on a steel beam per plan, with a steel edge angle coordinating the exterior facade. Cold-formed steel studs are anchored via TSN load-bearing stiff clips at each stud. Brick veneer is detailed per the architectural drawings.
TSN "LB" STIFF CLIP EACH STUD BRICK VENEER PER ARCH STEEL STUD PER PLAN STEEL BEAM PER PLAN CONCRETE OVER METAL FLOOR DECK PER PLAN STEEL EDGE ANGLE SEE 9/S601
