A wide-flange column receives structural steel beams at its top flange with a cap plate and continuity plates. The cap plate thickness equals the greater of flange thickness TF1 plus one-quarter inch or TF2 plus one-quarter inch, with a one-inch minimum. Continuity plates match the larger of flange thickness TF1 or TF2. Shear tabs connect the beam webs to the column flange where required, secured with bolts.

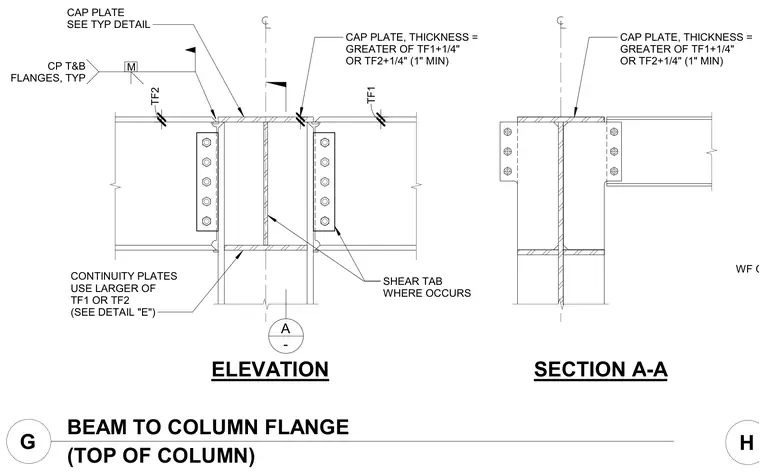

BEAM TO COLUMN FLANGE G (TOP OF COLUMN) SECTION A-A ELEVATION H CONTINUITY PLATES USE LARGER OF TF1 OR TF2 (SEE DETAIL "E") CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN) WF COLUMN CP T&B FLANGES, TYP M CAP PLATE SEE TYP DETAIL SHEAR TAB WHERE OCCURS TF2 TF1 - A CAP PLATE, THICKNESS = GREATER OF TF1+1/4" OR TF2+1/4" (1" MIN)
