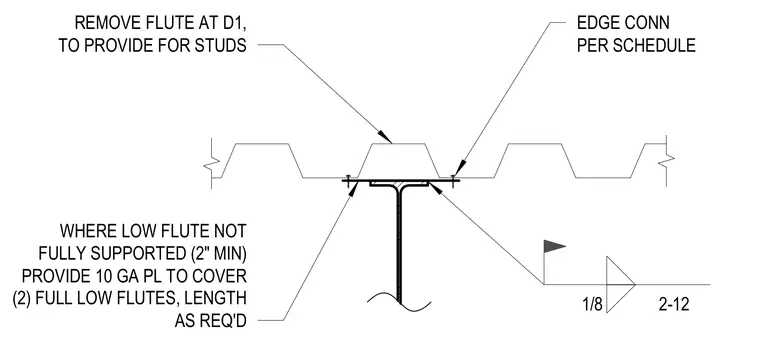

Where the low flute is not fully supported with a two-inch minimum bearing, provide a ten-gauge plate to cover two full low flutes with a length as required. Remove the flute at D1 to provide space for studs. Edge connections are installed per schedule using mechanical fasteners. A one-eighth-inch fillet weld secures the assembly.
EDGE CONN PER SCHEDULE REMOVE FLUTE AT D1, TO PROVIDE FOR STUDS WHERE LOW FLUTE NOT FULLY SUPPORTED (2" MIN) PROVIDE 10 GA PL TO COVER (2) FULL LOW FLUTES, LENGTH AS REQ'D 1/8 2-12
