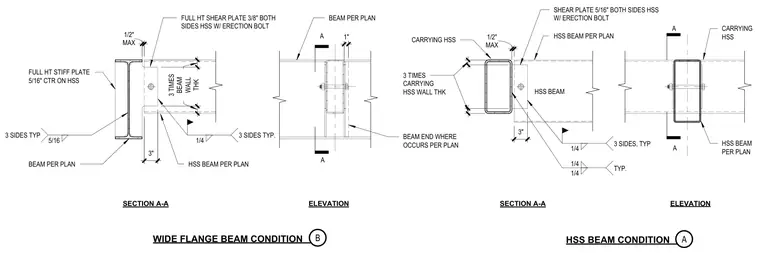

Wide flange and hollow structural section beam connections feature three-eighths-inch and five-sixteenths-inch shear plates on both sides with erection bolts. A full-height stiffener plate centered on the hollow structural section is welded with five-sixteenth-inch welds on three sides typical. Additional quarter-inch fillet welds secure the beam framing conditions per plan. A maximum one-half-inch clearance is maintained at the beam top flange condition.
3 TIMES BEAM WALL THK FULL HT SHEAR PLATE 3/8" BOTH SIDES HSS W/ ERECTION BOLT FULL HT STIFF PLATE 5/16" CTR ON HSS SECTION A-A WIDE FLANGE BEAM CONDITION ELEVATION A A BEAM PER PLAN HSS BEAM PER PLAN CARRYING HSS HSS BEAM PER PLAN SHEAR PLATE 5/16" BOTH SIDES HSS W/ ERECTION BOLT CARRYING HSS HSS BEAM 3 TIMES CARRYING HSS WALL THK A A SECTION A-A ELEVATION HSS BEAM CONDITION MAX 1/2" 3" 1" 3" MAX 1/2" 1/4 3 SIDES TYP. 5/16 3 SIDES TYP 1/4 3 SIDES, TYP 1/4 1/4 TYP. HSS BEAM PER PLAN BEAM PER PLAN BEAM END WHERE OCCURS PER PLAN A B
