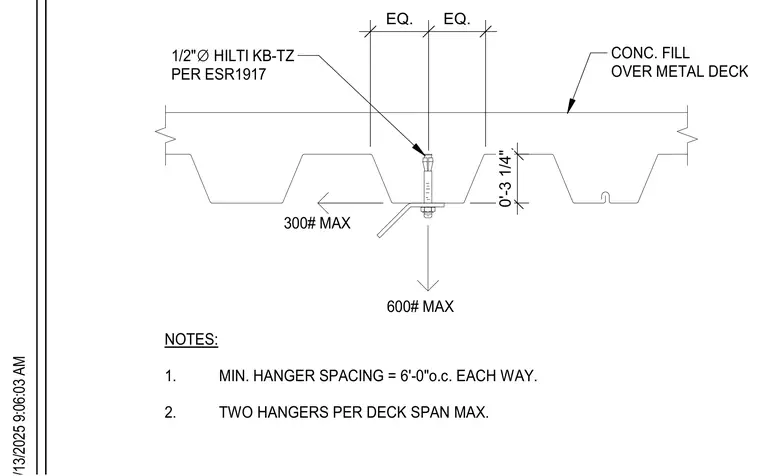

An expansion anchor connection secures a hanger bracket to the underside of a concrete fill over metal deck assembly. The connection utilizes a 1/2-inch diameter Hilti KB-TZ wedge anchor installed per ESR1917. Maximum allowable loads are designated as 300 pounds and 600 pounds. Hanger spacing is limited to a minimum of six feet on center each way, with a maximum of two hangers per deck span.
0'-3 1/4" EQ. EQ. CONC. FILL OVER METAL DECK 1/2" ∅ HILTI KB-TZ PER ESR1917 300# MAX 600# MAX NOTES: 1. MIN. HANGER SPACING = 6'-0"o.c. EACH WAY. 2. TWO HANGERS PER DECK SPAN MAX.
